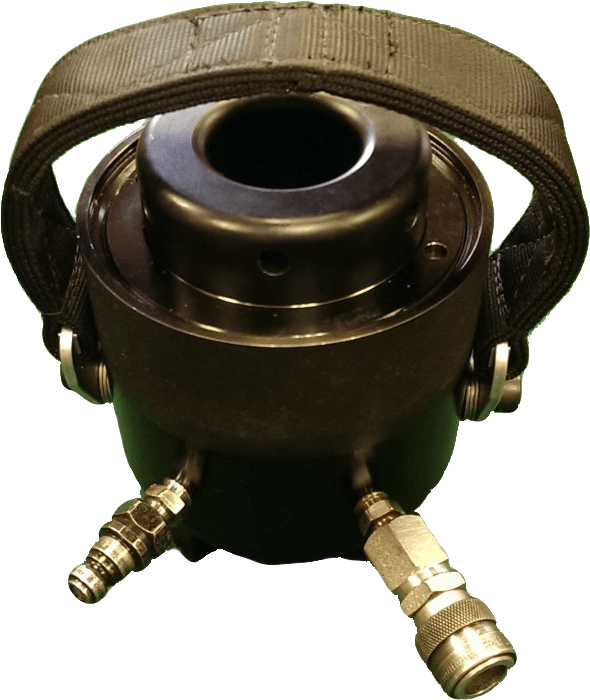

Flange Tensioner
The lightest weight and smallest overall diameter of bolt tensioners in its class, designed to fit ASME 16.47, ASME 16.5, and API 6A flanges.
Product Overview
The Flange Tensioner is a lightweight, compact and versatile line of tensioners. It operates at a maximum pressure of 21,750 psi and utilizes high strength AISI 4340 steel components for long lasting performance.
The Flange Tensioner is among the lightest weight and smallest overall diameter of bolt tensioners in its class. It offers a spring return piston that eliminates the need to press the piston back after each use. This design features an over stroke stop that prevents seal damage and leakage that also has a visual color coded indicator to identify maximum stroke.
The FL Series were designed to fit on ASME 16.47, ASME 16.5, & API 6A flanges. Standard Catalog sizes cover stud diameters 1" up to 4".
In addition to the standard catalog product, Riverhawk will customize any Hydraulic Bolt Tensioner to better fit your application. Examples of modifications include special fittings, special bridges, spanner sockets for 12-pt nuts, or a complete custom design.
Key Features
- Designed to Fit ASME 16.47, ASME 16.5, & API 6A Flanges
- Lightest Weight in Class
- Overstroke Protection — prevents seal damage
- Spring Return — no manual piston reset required
- Color-coded Stroke Indicator
- Quick Disconnect Hose Connections
- Standard sizes: 1" to 4" stud diameter
- Full Engineering Support
Applications
Technical Specifications
See It In Action
Watch a live demonstration of our Flange Tensioner.
Ready to Order or Need Help Specifying?
Our engineers are available to assist with product selection, sizing, and custom configurations.
