Typically used in situations where the required volume of hydraulic fluid is minimal. Available configurations include a single pump design for small tensioning purposes or a dual pump design for hub installation applications.
Tensioning
Manual Hydraulic Pump Kit
We develop a manual hydraulic installation kit designed to be a complete solution. These pump kits are supplied with two pumps, their associated gauges all mounted on a welded sled. All pump kits are supplied with the appropriate fittings, adapters and hoses. The hoses in our manual hydraulic pump kits have swivel fittings at each end with a Derlin inner liner, six layers of wound steel pressure support and a Nylon outer cover. They can be readily flexed to a 10-inch radius for storage. They are both rated for the higher pressure, thus are safely interchangeable. All of the interconnecting fittings use the 60-degree angle cone connection, which is the ‘de facto’ standard for high-pressure equipment.
Manual Hydraulic Pump Kit Overview
- Eliminates Hard Couple Tubing
- Plastic Shipping & Storage Container
- Single Pump Configuration
- Base Mounted 21,750 PSI Pump and Gauge
- Supplied with 10 ft. Flexible Hose
- ISO Grade 32 Hydraulic Oil
- Pressure Tested to Full Capability

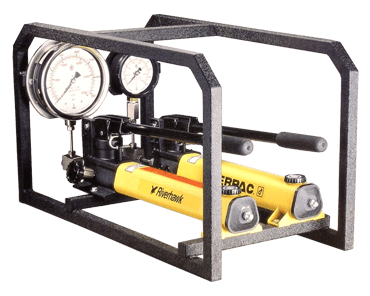

- Dual Pump Configuration
- 10,000 PSI and 35,000 PSI Pumps and Gauges
- Skid Mounted Light Weight Frame (45 LBS)
- Two Interchangeable 10 FT. Flexible Hoses
- ISO Grade 32 Hydraulic Oil
- Pressure Tested to Full Capability
